The patch

parche/dunkshot_msx2.ips: 292 bytes, 164 bytes of the cartridge changed in 24 stretches. On an MSX2 it puts the game in SCREEN 4, eight sprites per line, and shows only the table sorted by depth (The flicker). On an MSX1 the same file plays as the original.

What the V9938 changes

SCREEN 4 (mode G3) is SCREEN 2 with sprites in mode 2: same pattern, name and colour tables, so the game's graphics need no change. Three things differ:

• Register 0 gets bit 2 (M4) instead of bit 1 (M3). The TMS9918 has no M4, so on an MSX1 it must not be touched.
• Register 5, with bits 0-2 set to 1 (the VDP ignores them), points at a 1 KB block: its first half is the sprite colour table, 16 bytes per sprite, one colour per line (bit 7 = early clock, as in the attribute), and the 128 bytes of attributes sit at +0x200. The colour byte of the attribute is ignored. It is what the BIOS does in SCREEN 4: R5 = 0x3F, colours at 0x1C00, attributes at 0x1E00.
• The end of the list is Y = 216, not 208.

Below the 16 KB of an MSX1 the game leaves only 0x3C00-0x3FFF unused (the sprite patterns end at 0x3BBF), so: colours at 0x3C00-0x3DFF, attributes at 0x3E00, and the second table the MSX1 alternates at 0x3F00. On an MSX1, R5 = 0x7C or 0x7E points at those two tables; on an MSX2, R5 is always 0x7F and the VDP shows 0x3E00 both frames, the list sorted by depth of 0xE7B0, from which the colours are taken. No pattern moves.

What changes in the cartridge

• 0x5036: jp INIGRP goes to a hook in the 0xFF filler at 0xBFD4: after INIGRP, ATRBAS = 0x3E00 and R5 = 0x7C; if the BIOS is an MSX2's (byte 0x002D), also R0 = 4 and R5 = 0x7F.
• 0x5B7B: xor 4 becomes xor 1: the alternation is 0x3E00 / 0x3F00. Its WRTVDP (0x5B82) goes through 0xBFF3, which on an MSX2 always writes 0x7F. 0x5B9B compares with 0x3E, the table congela_sprites leaves showing.
• 0x5BE6, 0x5BF2: the two copies per frame go to 0x3E00 and 0x3F00; the second continues at 0x7AAE with the colour table: the 32 colours of the sorted list at 0xE7B0, 16 bytes each, to 0x3C00 with out and interrupts off (0x6EA0). On an MSX1 it returns at once.
• 0x5BFB, 0x7374, 0x8057: the ends of the list write 0xD0 and, in the next entry, 0xD8 (0x6EC9).
• 0x5063, 0x804C, 0x80D5, 0x80DC: 0x1B00 and 0x1B10 become 0x3E00 and 0x3E10.

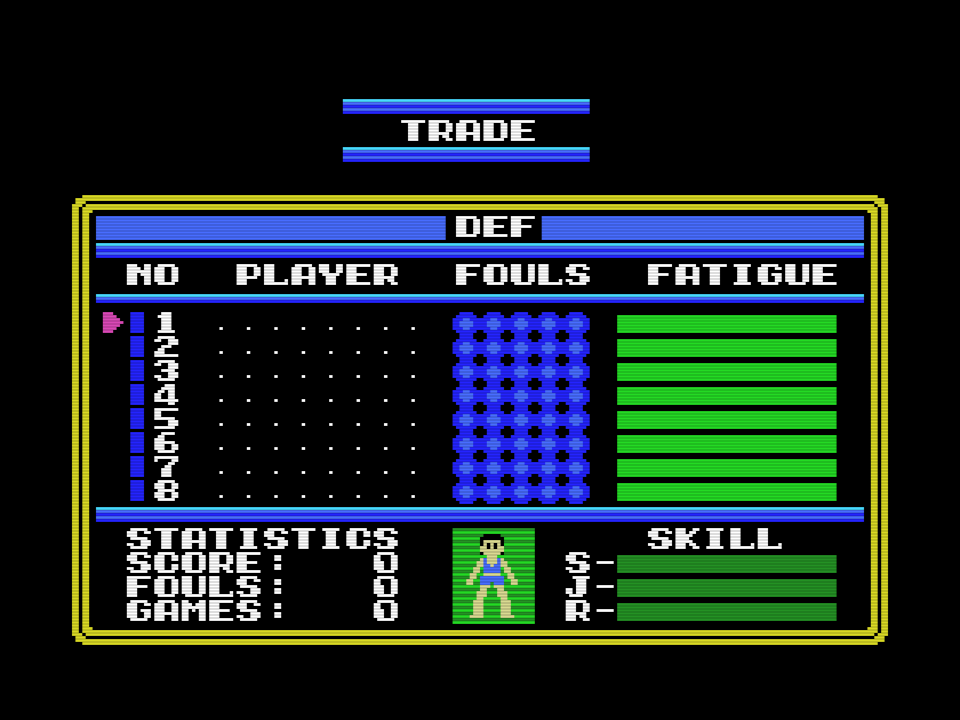

• 0x80CE: the end of viste_jugador, the sample figure of the team cards and of TRADE, jumps to 0x6F30: it reads the eight attributes back from VRAM and fills their colours, so the figure keeps its skin, hair and shirt on an MSX2 too.

Where the new code lives

In the 0xFF filler at 0xBFD4-0xBFFD and in three orphan routines of the cartridge that nobody calls (0x6EA0, 0x6F30, 0x7AAE), found when the disassembly was traced. Their listing is parche/parche_msx2.asm; the original code around every patched byte is in src/dunkshot.asm.

piece	address	bytes
hook after INIGRP	0xBFD4	31
register 5 by machine	0xBFF3	11
sprite colour table	0x6EA0	38
end of list, 0xD0 and 0xD8	0x6EC9	14
colours of the sample figure	0x6F30	22
second copy and colours	0x7AAE	9
