The game
Simon Belmont walks into Dracula's castle with a whip and has to reach him. The castle is 19 stages: the courtyard at the gate (stage 0) and eighteen more, grouped in six blocks of three. Each block ends with a boss. That makes 156 rooms, and each one is seen whole: there is no scrolling here, you go from one room to the next through the sides, the top and the bottom.
Every picture on this page is drawn from the bytes of the ROM with the tools in tools/, which follow the cartridge's own steps, and checked against openMSX dumps (MSX2, C-BIOS_MSX2_EU). Under each one it says which table it comes from.
The title screen

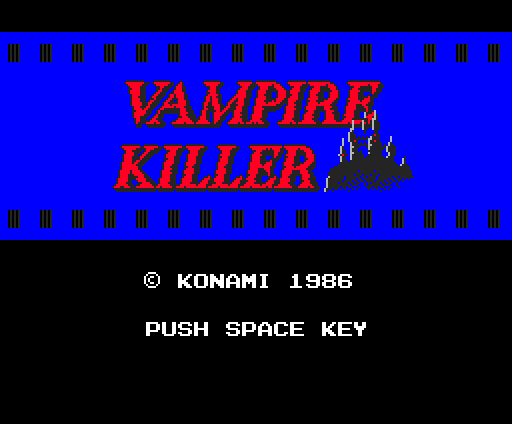

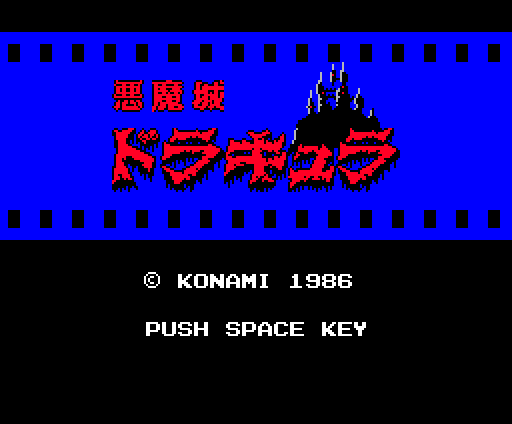

The same cartridge carries two titles: Vampire Killer and 悪魔城ドラキュラ (Akumajō Dracula). It picks one by reading BIOS byte 0x002B, the one that says which country the computer is from (p00:4D9E). Both come from the cartridge and both are checked: coteja.py titulo, 4 dumps (curtain and title, on a European and a Japanese machine) with 0 bytes different on screen and in the palette.

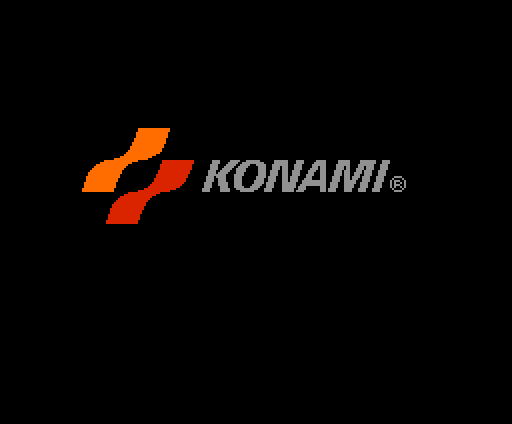

Before the title, the Konami logo is drawn on page 1 of the VRAM and p01:624C copies it to page 0 one line at a time, like a curtain.
The castle

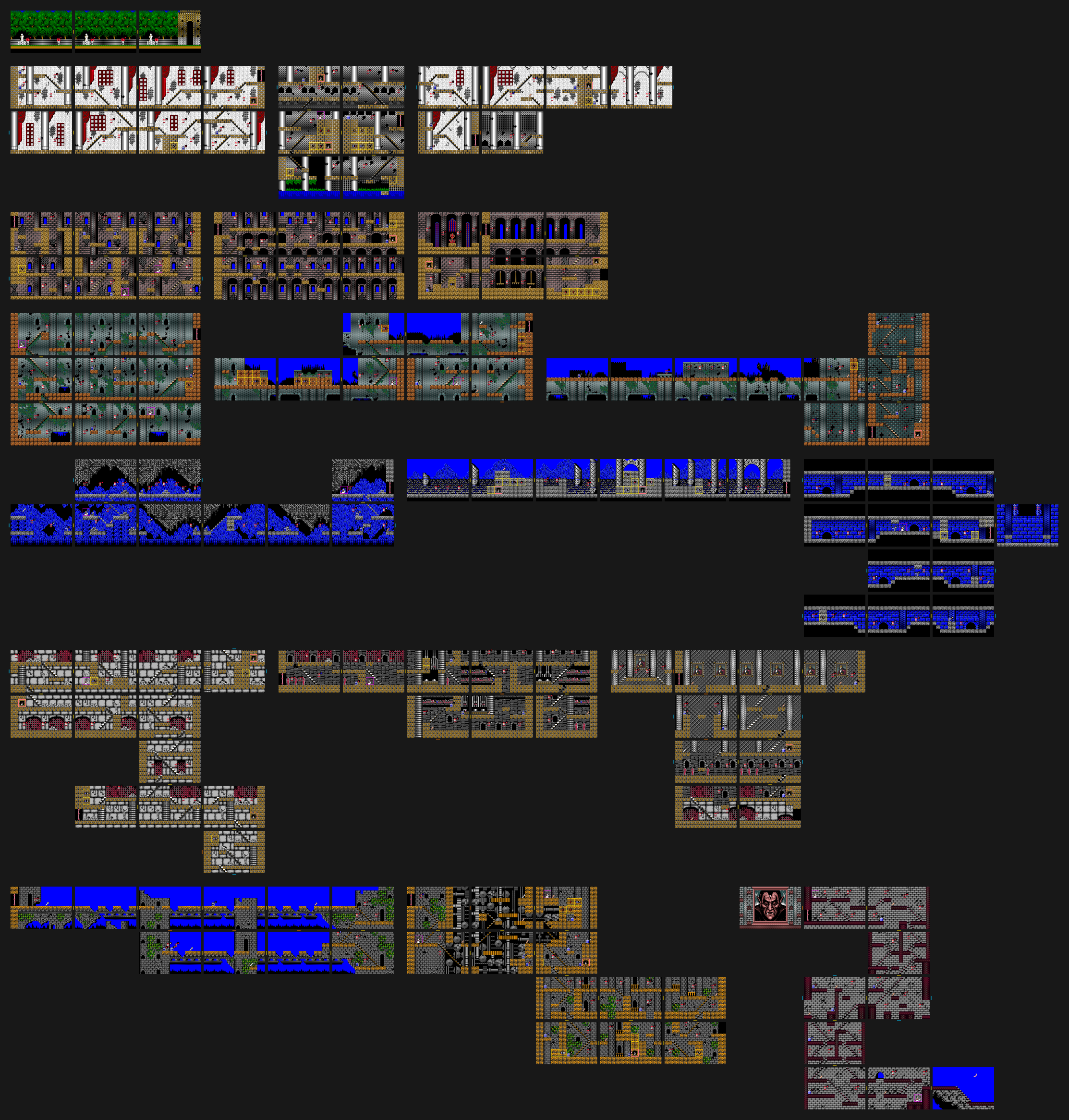

The 19 stages in place, each on its own grid. A room is 8 × 6 blocks of 32 × 32 pixels (bank 11: 156 pointers from 0x6013), and each block is 4 × 4 tiles of 8 × 8 (0x7EBB, one per stage). Of its 24 rows of tiles, 22 are drawn, from y 32 (under the status bar): the first two are never seen. The tiles are uploaded to page 1 of the VRAM when the stage starts, 191 per stage from banks 4 to 8 (table 0x5742), and the palette is built in layers: the scene's, the base, the stage's and the room's (0x9AB0).
Check: coteja.py habitaciones compares the 156 rooms with 156 openMSX dumps, one per room: 0 with differences. The probe (tools/omsx_habitacion.tcl) sets the stage and the room in RAM and dumps the VRAM when the cartridge switches the screen on.
Each room's exits are at 0xB9D3 (bank 13): one nibble per side. coteja.py mapa walks them all: 22 are one-way, and all of them are drops or the way into the boss except two, (13, 11) → 9 and (17, 10) → 11.
A stage, with what it hides

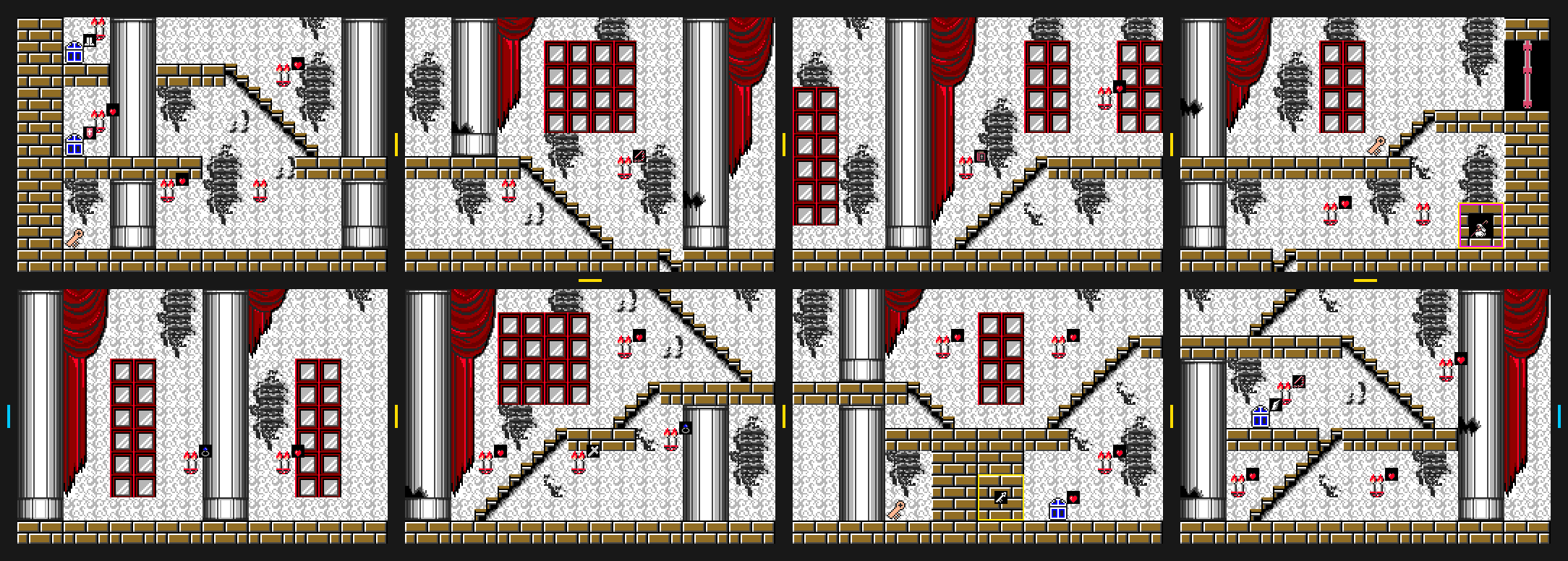

Each stage has its own sheet (docs/imagenes/fase_00.png to fase_18.png), with the secrets marked. This is stage 1:
What each room hides is in a list in bank 14 (0x8000, one pointer per block of three stages). Each entry carries the position and, in the top three bits of the second byte, what it is. The whole castle has 620:
| what | how many | how it is drawn |
|---|---|---|
| candles | 365 | row 0x70 of page 1, two frames taking turns |
| breakable blocks | 92 | 4 × 4 tiles from 0x8792 or 0x87A6 (p02:86CA) |
| items in plain sight | 76 | rows 0x50 and 0x60 of page 1, with transparency |
| chests | 71 | item 0x19 |
| vendors in plain sight | 16 | the white old man, 32 × 32 from page 1 (96, 0xA0) |
What comes out of a candle or a block, or out of a chest, is in the low bits. The most common: 129 hearts, 100 big hearts, 77 keys and 21 white keys. In 52 places what comes out is an enemy (type 0x15: p02:8AD0 takes it from the table at 0x8AF0).
Each stage's exit door is at 0xBB61 (bank 13): room, y and x. The cartridge draws it from the ROM, six 8 × 8 pieces one under the other.
The vendors
There are 33 vendors: 16 in plain sight and 17 inside breakable blocks. The vendor is a 32 × 32 hooded old man, the same mould (0xBDA7) that p00:54F0 colours five times on row 0xA0 of page 1. He comes out white; when hit he blinks with the black one and stays in the colour of what comes (0x9320): red, the shop; pink, hearts; blue, 0xD012; white, nothing or he leaves. Each one sells one thing (0x5B0B): full life, dagger, boomerang cross, shield, flask, staff, hourglass, the candle that marks the blocks… But they do not always sell: what happens depends on their class (two bits of the secret) and on how many times you have hit them. Each hit adds one (p02:8115), and the table at 0x9300 says what each hit brings, eight per class (p02:92BB). From the eighth on, the last one repeats:
| class | vendors | hit 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|---|
| 0 | 10 | shop | +5 ♥ or nothing | +5 ♥ or nothing | +5 ♥ or nothing | −5 ♥ or nothing | −5 ♥ or nothing | nothing | leaves |
| 1 | 7 | shop | +5 ♥ | +5 ♥ | 0xD012 +1 | nothing | nothing | nothing | leaves |
| 2 | 6 | +5 or −5 ♥ | +5 or −5 ♥ | shop | nothing | nothing | nothing | 0xD012 −1 | leaves |
| 3 | 10 | nothing | nothing | nothing | nothing | shop | +5 ♥ | nothing | leaves |
Where it says "or", the Z80's R register draws lots. "Leaves" gives 5,000 points and the vendor does not come back. The hit count is cleared at the start of every life (p00:5AAF). If the shop opens and you leave without buying, that hit does not count when you come back (p02:925B).
Prices, in hearts, depend on the books (0xC702, p02:9418): with the white one, cheaper; with the red one, dearer. You carry one or the other, never both.

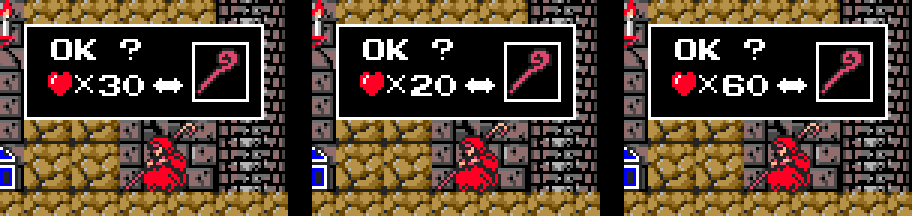

The window (p02:9397) opens 0x18 dots above the vendor and to his left: 0x50 × 0x20, cleared and framed in colour 0x0E; inside, the labels at 0x9485 and 0x948A, the two-digit price and the item in its frame. Fire or space buys; the other button, no hearts, or 0x14 spells of 32 frames close it. Check: coteja.py tienda, six dumps of the open shop (tools/lanza_tiendas.sh), 0 dots different.
| what it sells | no book | white book | red book |
|---|---|---|---|
| dagger | 50 | 30 | 90 |
| full life | 40 | 15 | 80 |
| hourglass | 40 | 20 | 80 |
| staff | 30 | 20 | 60 |
| flask | 30 | 10 | 50 |
| shield | 20 | 10 | 80 |
| boomerang cross | 20 | 10 | 80 |
| red shield | 20 | 10 | 60 |
| candle | 20 | 15 | 60 |
Seen in openMSX hit by hit, with one vendor of each class.
The items

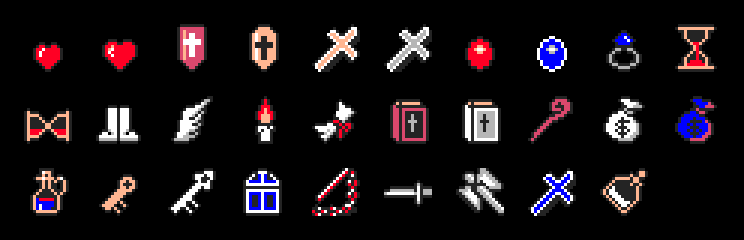

The item of type t is drawing t − 1 of page 1: the first sixteen on row 0x50 and the rest on 0x60 (p02:8CC1). What each one does is handed out by p02:8D3E; the names are those of its drawing.
| type | item | what it does |
|---|---|---|
| 0x01 | heart | one heart |
| 0x02 | big heart | five hearts |
| 0x03 | red shield | for 16 hits (0xC441) |
| 0x04 | shield | for 16 hits (0xC441) |
| 0x05 | white cross | clears what is in the room, and the vendors leave (p02:8DC2) |
| 0x06 | grey cross | the weapon counter to 0x96 frames (0xC440) |
| 0x07 | red orb | 8 of life |
| 0x08 | blue orb | invincible for 0x96 frames (0xC43A) |
| 0x09 | ring | kills on touch while it lasts (0xC434) |
| 0x0A | hourglass | a bit of what he carries (0xC701, bit 6) |
| 0x0B | bow | counters last 0xF0 instead of 0x96 (0xC431, bit 2) |
| 0x0C | boots | a bit (0xC431, bit 3) |
| 0x0D | wings | a bit (0xC431, bit 4) |
| 0x0E | candle | marks the breakable blocks (0xC702, bit 0) |
| 0x0F | scroll | three uses of the map with F2 (0xC70F) |
| 0x10 | red book | the shop, dearer (0xC702, bit 6) |
| 0x11 | white book | the shop, cheaper (0xC702, bit 7) |
| 0x12 | staff | a bit (0xC431, bit 1) and another of what he carries |
| 0x13 | white bag | 5,000 points |
| 0x14 | blue bag | 1,000 points |
| 0x15 | — | an enemy (p02:8AD0) |
| 0x16 | bottle | full life |
| 0x17 | key | a bit of what he carries (bit 1) and 0xC700 = 1 |
| 0x18 | white key | a bit of what he carries (bit 0) |
| 0x19 | chest | what it hides |
| 0x1A-0x1D | weapons 1 to 4 | chain whip, dagger, axe and boomerang cross: to 0xC416 and to the scoreboard (p02:8D70) |
| 0x1E | flask, weapon 5 | a bit of what he carries (bit 3, p02:8D8D) |
Simon

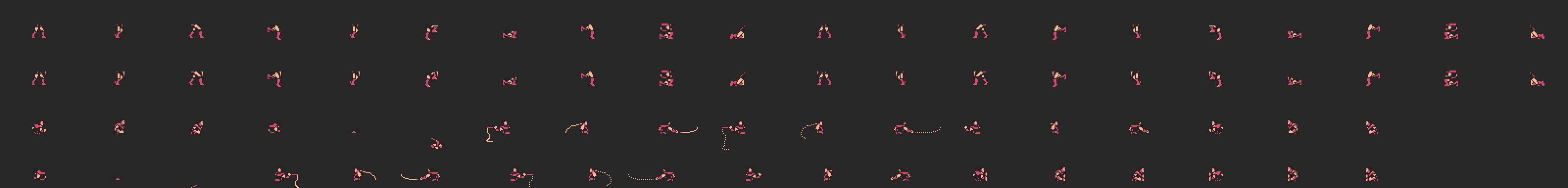

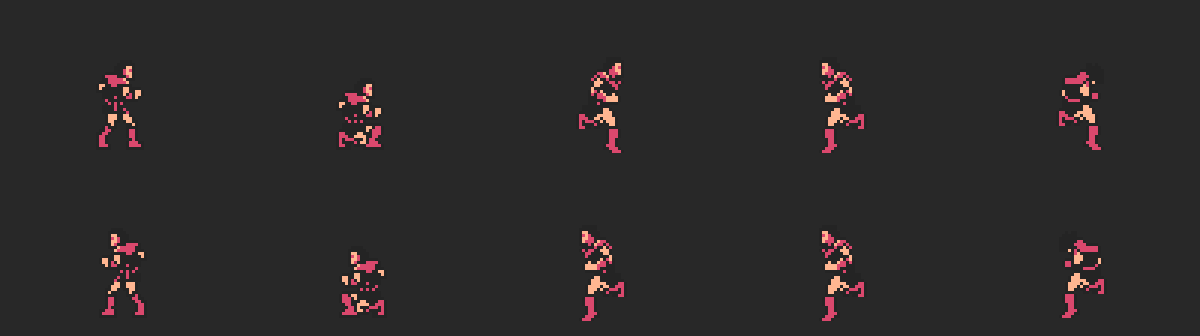

Simon is two halves: legs (0xC42E) and body (0xC42F), each with its own 16 × 16 mode 2 sprites, coloured line by line. There are 40 leg frames and 36 body frames (tables at p01:7985 and p01:79D5), and the code combines them according to what he is doing: walking, crouching, jumping, climbing stairs, whipping.
Check: coteja.py simon, 156 dumps, 0 with differences (in 11 Simon is one frame further on and in 5 he still has the previous pose's patterns: those are checked against that pose).
The enemies

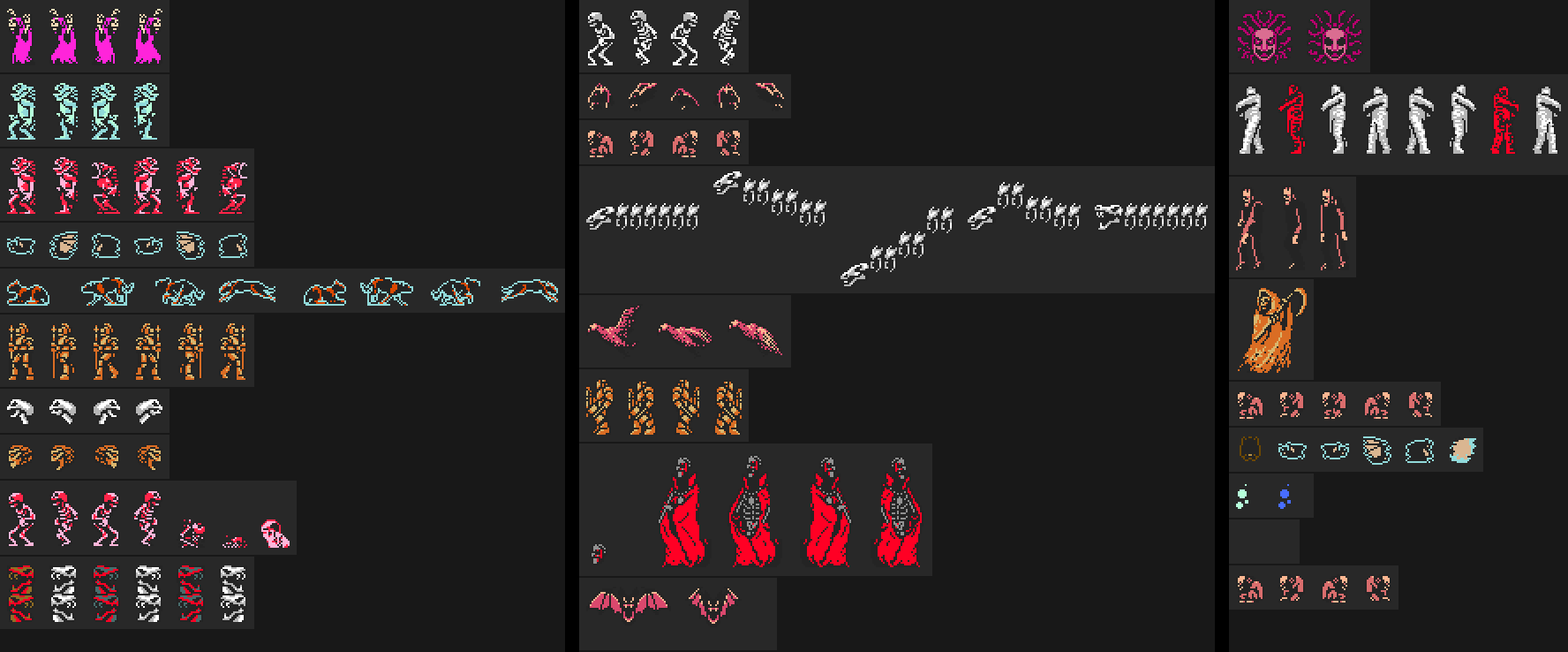

One row per type. The things in each room are at 0x8668 (bank 14): type and position. When it creates one, the cartridge reads how many sprites it has (0x6058), in which colours (0x6084) and how much life (0x60E1); every frame, its drawing picks in 0xB473 (bank 6) where each sprite goes. The frames in each row are the ones seen in openMSX (250 frames per room), and each one is checked against its table: coteja.py enemigos gives 58,430 samples with their drawing, 959 with another frame's, 257 read halfway and 98 halfway through being created; none unexplained.
The names go by the drawing; where the drawing does not settle it, it is described:
| type | what it is | stages | life |
|---|---|---|---|
| 0x01 | purple-robed figure with its arms up | 1, 2 | 1 |
| 0x02 | fishman | 2 | 1 |
| 0x03 | hunched red creature | 10 | 2 |
| 0x04 | blue outline | 1, 2 | 1 |
| 0x05 | panther | 1, 3 | 1 |
| 0x06 | knight with a spear | 4, 5 | 4 |
| 0x07 | flying white head | 6 | 2 |
| 0x08 | the same, orange | 4 | 1 |
| 0x09 | red skeleton that falls apart | 13, 14 | 2 |
| 0x0A | pillar of skulls | 6, 8, 9 | 8 |
| 0x0B | skeleton | 7, 8, 9, 13, 17 | 4 |
| 0x0C | bat | 7, 8 | 1 |
| 0x0D | hunchback | 7, 9, 11, 13, 17, 18 | 1 |
| 0x0E | bone dragon | 11, 12 | 12 |
| 0x0F | eagle | 11 | 8 |
| 0x10 | orange knight | 14, 15, 17, 18 | 8 |
| 0x1F | blue outline, with other frames | 3, 4 | 1 |
| 0x20 | bubbles | 2, 10 | 1 |
| 0x23 | hunchback the eagle brings | 11 | 1 |
Type 0x21 (stage 10) has its row, but it comes out empty: see Open questions.
The bone dragon
Type 0x0E does not use the 0xB473 table: its eight sprites are placed with tables of their own in bank 3: pattern and colour (0xAB0E), x (0xAB1E) and eight height records (0xAAAD). In the check, 1,347 samples fall on one height record and 649 between two; none unexplained.
The six bosses
| block | stage | boss | type | life |
|---|---|---|---|---|
| 1 | 3 | giant bat | 0x12 | 16 |
| 2 | 6 | Medusa | 0x13 | 16 |
| 3 | 9 | two mummies | 0x14 | 16 |
| 4 | 12 | Frankenstein's monster, with a hunchback (0x18) | 0x15 | 32 |
| 5 | 15 | Death | 0x16 | 32 |
| 6 | 18 | Dracula | 0x11 | 32 |
They are on the enemies sheet, each in its row. After the boss, game state 8 moves on to the next block.
Dracula, whole

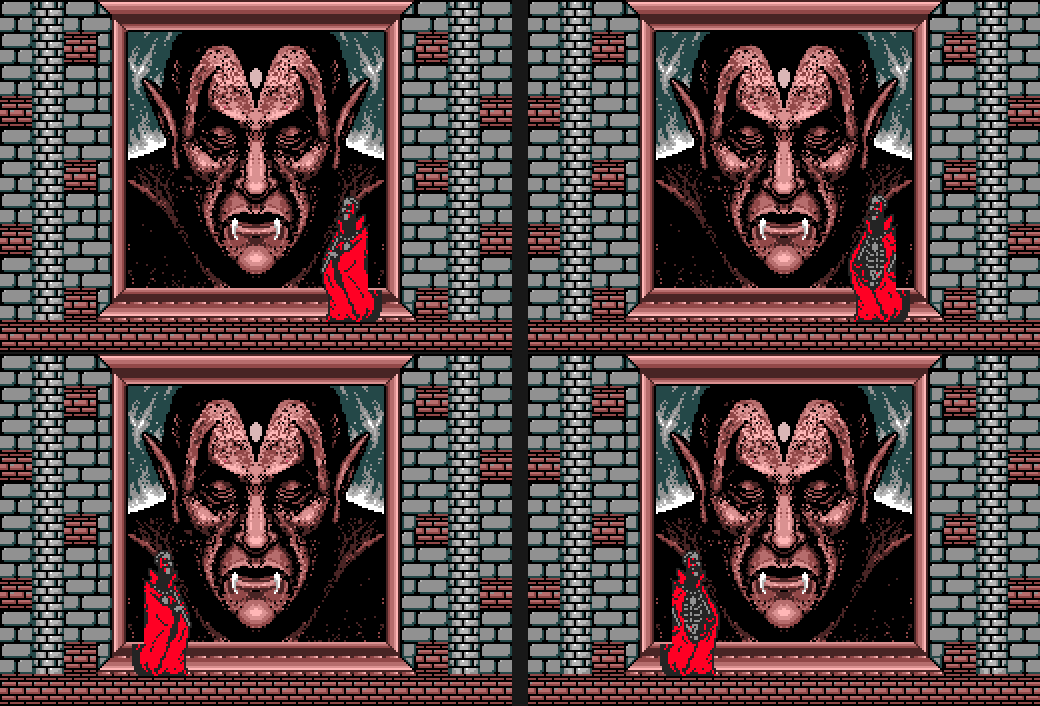

Dracula does not fit in sprites. The head is a sprite, but the body is drawn by the VDP: the cartridge saves the background at (0x80, 0x80) of page 1 and copies the body onto the screen from page 1 (x 0, 32, 64 or 96, y 0x80) with LMMM and transparency (p03:AD80, p03:AD93). Check: coteja.py dracula, 4 dumps (one per frame), 0 bytes different on screen, saved background, sprites and patterns.
What they throw

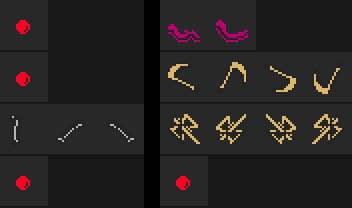

What the enemies throw goes in another list, the one at 0xD700, with its own type numbers (p02:9E5C; the parameters of each, at 0xA08F): fireballs (from the giant bat, the pillar of skulls, Dracula and in the monster's room), the skeleton's bones, Medusa's snakes, Death's sickles and the orange knight's axes.
The ending
After Dracula, p01:66BA scrolls up a text line by line with VDP register 23 (the vertical scroll), to music 0x8E. The 41 lines are in banks 5 and 8, with the pointer table at 0x678E: each one carries the moment it appears, the column and the text in ASCII. The font is completed by p00:53DE with letters from bank 14, where “:” is drawn as a full stop and “;” as an apostrophe; here it is as it looks:
SO THE BRAVE YOUNG MAN
PUT DRACULA INTO DEEP
SLEEP AGAIN AND THE TOWN
RESTORED ITS PEACE.
LET'S PRAY THAT THE EVIL
MIND OF HUMANBEINGS WILL
NOT LET DRACULA COME TO
LIFE EVER AGAIN....And the STAFF:
| GAME DESIGNER | A. NAGATA |
| PROGRAMMER | A. HARIMA, I. AKADA, K. NAGAE |
| SOUND PROGRAMMER | H. SHIKAMA |
| GRAPHIC DESIGNER | S. IWAMOTO, N. MATSUI, K. MIZUTANI, A. FUJIMOTO |
| SOUND EFFECT BY | K. UEHARA |
| MUSIC BY | K. YAMASHITA, S. TERASHIMA |
| ART DESIGNER | F. HAYAKAWA |
| ASSISTANT PROGRAMMER | K. TOYOHARA, T. OKA, H. EDA, T. OHTSUKA, T. DANJYO |
| SPECIAL THANKS | K. HIRAOKA, FC. TEAM |
| PRODUCED BY | AKIHIKO NAGATA |
| PRESENTED BY | KONAMI |
When it ends, p01:6701 raises 0xD012, up to 2.
