Pippols' pixel scroll

Pippols (Konami, RC-729, 1985) moves the background one pixel at a time on an MSX1, in SCREEN 2, a mode with no scroll register at all. This document explains how it is done, with the cartridge's addresses alongside and the figures measured in the emulator.

Everything below comes from reading the listing (src/pippols.asm) and from two independent checks:

1. The problem

In SCREEN 2 the screen is 24 x 32 characters of 8 x 8 pixels. The name table says which character goes in each cell, and the pattern table says what each character looks like. There is no hardware scrolling, and three further complications:

So smooth scrolling has to be manufactured.

2. The idea: the same drawing eight times

Pippols puts eight copies of its background characters into VRAM, each one a pixel lower than the last:

characters 0x40-0x57   the background as it is    (offset 0)
characters 0x58-0x6F   the same, one pixel down   (offset 1)
characters 0x70-0x87   ...two pixels down
...
characters 0xE8-0xFF   ...seven pixels down

That is 8 x 24 = 192 characters, from 0x40 to 0xFF, so 1536 bytes of patterns and another 1536 of colour, and they take up exactly what is left of a third from 0x2200 to 0x2800. The first 64 characters (0x00-0x3F) are left for the panel, the font and the ground.

With that, scrolling the screen by a pixel is adding 24 to every character number in the name table. Not a single pattern is touched.

Here is the same window of background at the eight offsets, rebuilt by tools/graficos.py:

The eight offsets

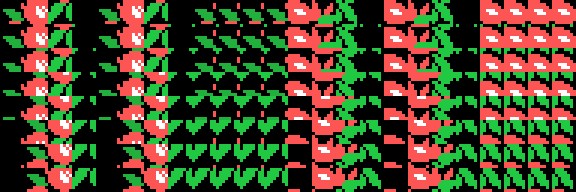

And stage 1's 192 characters (each row is one offset):

The 192 characters

3. How the 192 characters are generated

What the cartridge holds, compressed, is four 24-byte strips (0x5840 and following), which are four columns of three characters stacked vertically. CARGA_TIRAS (0x571E) brings them to 0xEA00, and CAMBIA_TINTAS (0x577D) swaps three pairs of inks so that the same shape comes out in a different colour on each screen of the world.

OCHO_DESPLAZAMIENTOS (0x569E) is the generator: for each offset p from 0 to 7 it calls DOCE_CARACTERES (0x56B5) twice, once per half. The left half comes from strips 1 and 2, and the right from 3 and 4. That is why, when the name table is dumped, a character and the one 12 further along are always written together: they are the two columns of the same pair.

The twelve characters of each half, calling A the top strip and B the bottom one:

indexcontents
0filler on top + the first 8-p bytes of A
1, 2the rest of A, dropped p pixels
3the end of A + filler underneath
4-7the same with strip B
8the end of A on top, the start of A underneath (A repeating)
9the end of A on top, the start of B underneath (A-B seam)
10the end of B on top, the start of A underneath (B-A seam)
11the end of B on top, the start of B underneath (B repeating)

The last four are built by CARACTER_DE_COSTURA (0x56ED), and they are what makes this work. A character dropped three pixels leaves three rows of pixels free at the top, and what has to show there is the end of the character above it. Since the background is built by repeating and alternating two strips, only four combinations are needed (A over A, A over B, B over A, B over B) and the drawing comes out continuous at any of the eight offsets.

The filler in characters 0-7 is the byte 0x11, which in the SCREEN 2 colour table means ink 1 on background 1: black on black. Whatever the pattern says underneath, it cannot be seen.

The 192 characters are generated once per screen, in GENERA_FONDO (0x566D), and copied to the three thirds identically so that the same character number is valid on any row.

4. The whole name table, every frame

VUELCA_NOMBRES (0x5312) repaints all 24 rows x 22 columns of the play area on every frame. Column 0 and column 23 onwards are not touched: that is where the border and the score panel live.

A row is not stored as 22 character numbers but as 6 bytes in a RAM buffer (0xE060-0xE0EF, 24 rows of 6). Each byte describes four columns, that is two pairs:

buffer bytewhat comes out
less than 0x0Ffixed pair (no offset) + empty pair
0x0F to 0x7Fpair n offset + empty pair
0x80 to 0xDFpair n-0x80 offset, twice
0xE0 and upa seam (8, 9, 10 or 11) and a cap (0, 3, 4 or 7), chosen by the bottom three bits

The offset is applied by adding to each character number the value computed by FASE_DEL_SCROLL (0x5306):

L = 24 * (position_in_pixels and 7)

and the output loop writes, for each buffer byte, A, A+12, H and H+12. The sixth byte only has room for two columns: 5 x 4 + 2 = 22.

Characters below 0x0F do not get the offset added: they are the plain background and the fixed decorations, which look the same at all eight offsets.

5. And every eight pixels, one row

PASO_DE_SCROLL (0x5239) is what keeps count. Every frame it:

  1. adds (or subtracts) one pixel to the stage position, a 16-bit counter at 0xE100;
  2. stores the offset from 0 to 7 in 0xE11C;
  3. if no character boundary has been crossed, calls VUELCA_NOMBRES straight away with the new offset and that is that;
  4. if one has been crossed, shifts the whole buffer six bytes (a 138-byte lddr) and ARMA_FILA (0x5293) builds the row coming in.

At that moment the offset goes back to 0, so the row step and the pixel offset meet without a seam.

6. Where the incoming row comes from

ARMA_FILA (0x5293) turns a position in pixels into the row's 6 bytes, with three chained tables:

position in pixels
  |  DIVIDE (0x5653) by 0xC0 = 192 pixels = 24 rows
  +--> stretch (0..12)  and  row within the stretch (0..23)
         |
         |  0x53A2: 10 plans x 13 stretches -> plan number
         +--> 0x5424: 19 stretches x 6 pieces
                +--> 0xE500: 44 pieces of 24 rows, one byte per row

So a stage is thirteen stretches of 24 rows = 2496 pixels, and each stretch is a row of six pieces laid side by side, each four columns wide. The first and the last are usually piece 2, which is the edge of the road.

The 44 pieces are not in the cartridge as such: DESCOMPRIME_PIEZAS (0x5496) builds them at 0xE500 by gluing 352 groups of three rows taken from a dictionary of 25 entries (0x54C0), with the index list at 0x550B. Eight indices per piece.

One detail: the index list is 328 bytes long and the loop reads 352. The last 24 reads land inside the code at 0x5653, so pieces 41, 42 and 43 come out of junk. No table points at them.

When a screen starts, ARMA_PANTALLA (0x5384) does this same thing 24 times over, bottom to top, to fill the whole buffer.

7. What it costs

Measured in openMSX on a Philips VG-8020 (PAL, Z80 at 3.579545 MHz, that is 71591 cycles per frame), letting the demo run for 150 emulated seconds: 1112 game frames, work/omsx/scroll.log.

cycles% of the frame
VUELCA_NOMBRES, average3255745.5 %
VUELCA_NOMBRES, peak3396947.4 %
The whole interrupt, average5253373.4 %
The whole interrupt, peak7008097.9 %

How the 1112 game frames fall out:

60- 70 % :   146
70- 80 % :   853
80- 90 % :   112
90-100 % :     1

And 732.7 writes to the VDP data port per frame: 528 are the name table (24 x 22), around 108 the sprite attribute table (27 sprites of four bytes, and the three enemy shots only three frames out of four) and the rest -up to 128- the player's patterns, which are reloaded in full on every frame.

In other words: repainting the name table takes 62 % of the interrupt's time, and the interrupt eats three quarters of the frame. The main program does nothing -it sits in a jr $ at 0x4074- because there is no time to spare for it.

8. Why this way and not another

9. What cannot be claimed
